無塵室環境量測儀器設備

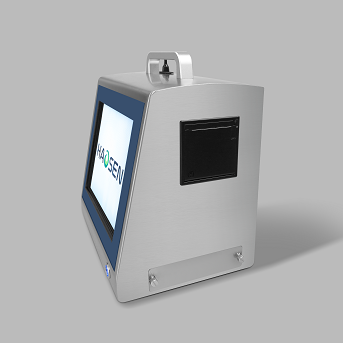

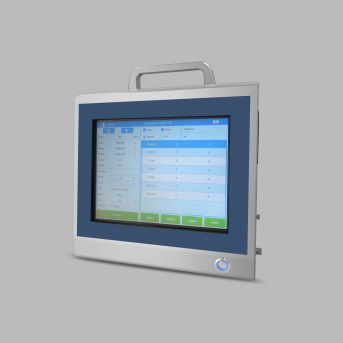

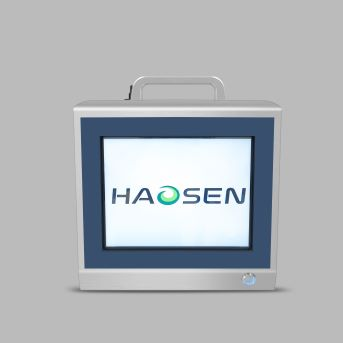

Y09-5100 鐳射塵埃粒子計數器
-
特點:
- 1、100 L/min的採樣量。
- 2、交直流兩用。
- 3、觸控式螢幕控制操作。
- 4、六通道粒徑同時顯示,顯示粒子濃度(顆/m3)。
- 5、自動UCL計算(適用於GMP、ISO14644等)
產品介紹| Product description |
產品規格| Product Feature |
外形尺寸Outside Dim | 268*192*292mm(寬高深Wide*High*Deep) |
顯示方式Display | 觸摸顯示幕(Lcd) |
重量Weight | 7.5 Kg |
最大功耗Max.Consumption | 80W |
電源Power Source | DC16.8V內置鋰離子電池(Built-in Lithium Battery) |
粒徑通道Size Channels | 0.5、1、3、5、10、25μm |
計算Calculation | 95%UCL計算,可直接顯示粒子濃度(顆/立方米、顆/立方英尺) |
採樣流量Flow Rate | 100L/min進口採樣泵(Imported Pump) |
檢測週期Sample Time | 0~999999s之間任選(Selectable) |
自淨時間Zero Count | ≤10min |
測量位置Location Labels | 0~9999 |
列印Printer | 內置式熱敏印表機(Built-in Thermal Printer) |
報警等級Alarm | 自設(Class) |
資料存儲Date Storage | 20000組/300組UCL(配PC機專用通訊軟體)20000 Samples/300Samples of UCL(With PC Software) |
資料輸出Date Output | USB Port |
光源Light Source | 半導體雷射器(壽命大於30000小時)Laser Diode(30000 hours mean time between failures) |
最大採樣濃度Maximum Rated Particle Concentration | 35000顆/升(particles/L) |
連續工作時間Operating Time | 5小時(hours) |
使用環境條件Environmental | 溫度(Temperature):10~35℃濕度(Humidity):20%~75%RH大氣壓力(Atmosphere Pressure):86~106Kpa |
